Product no 993262273
Model SMT1500IC
Brand APC
EAN 0731304332992
Weight 26.66 kg

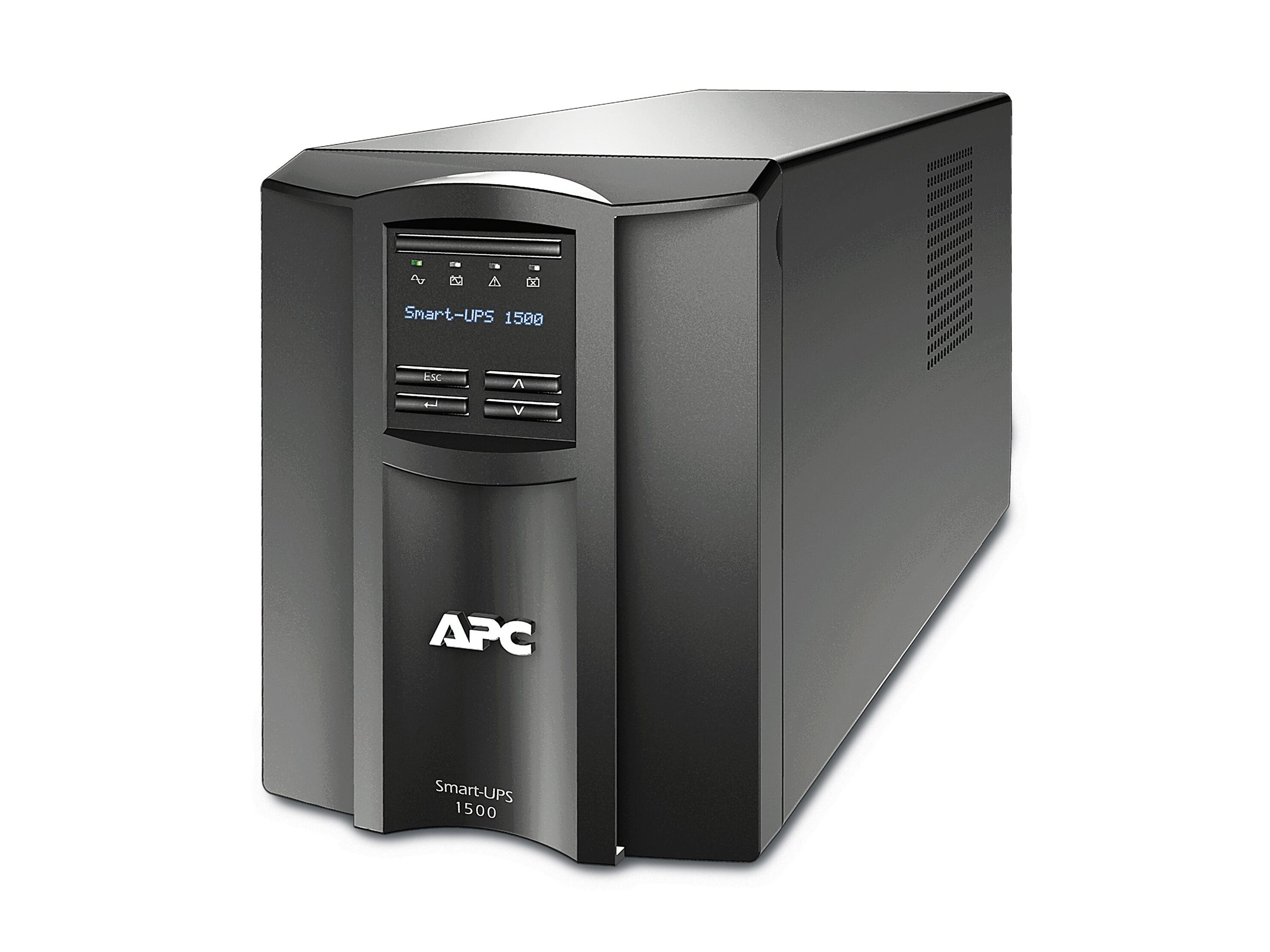

Produktbeskrivelse | APC Smart-UPS SMT1500IC - UPS - 1000 Watt - 1500 VA - med APC SmartConnect |
Enhedstype | UPS - ekstern |
Vægt | 24.09 kg |
Indgangspænding | AC 220/230/240 V |
Udgangspænding | AC 230 V ± 5% |
Strømkapacitet | 1000 Watt / 1500 VA |
Input-stik | 1 x strøm IEC 60320 C14 |

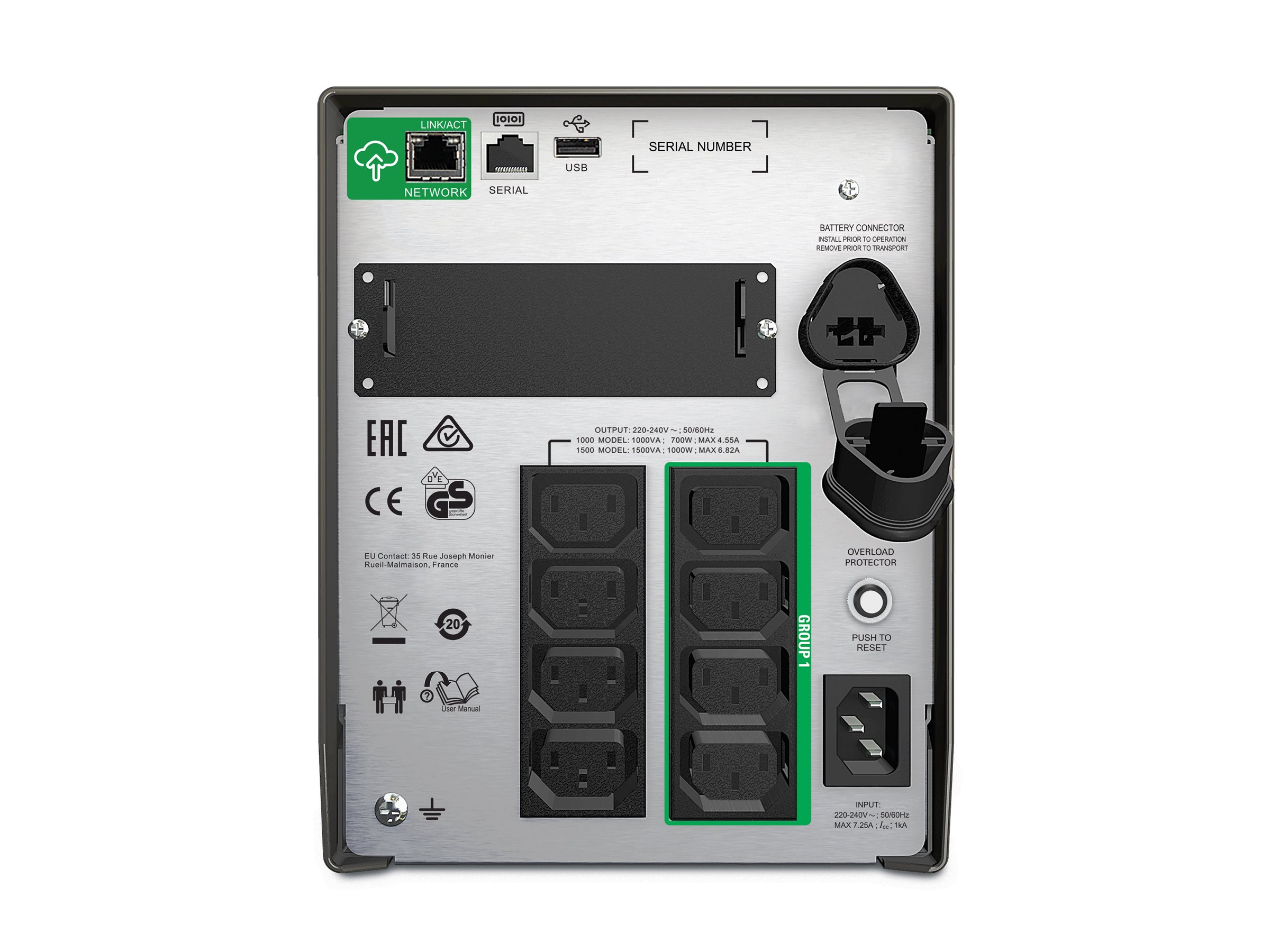

Output-stikforbindelser | 8 x power IEC 60320 C13<br>2 x IEC-lus |
Batteri | Blysyre |
Antal batterier | 1 |
Driftstid (op til) | 6.5 min ved fuld belastning |
Netværk | RS-232, USB |
Farve | Sort |
Dimensioner (B x D x H) | 17.1 cm x 43.9 cm x 21.9 cm |
Producentgaranti | 3 års garanti |
Bundtet med | APC SmartConnect |
General | |
---|---|
Bundled with | APC SmartConnect |
Color | Black |
Device Type | UPS - external |
Power Device | |
Circuit Protection | Circuit breaker |
Frequency Provided | 50/60 Hz ± 3Hz |
Frequency Required | 50/60 Hz ± 3Hz |
Input Connectors | 1 x power IEC 60320 C14 |
Input Voltage | AC 220/230/240 V |
Input Voltage Range | AC 160 - 286 V |
Input Voltage Range (Adjustable) | AC 151 - 302 V |
Output Voltage | AC 230 V ± 5% - 50/60 Hz |
Output Waveform | Sinewave |
Power Capacity | 1000 Watt / 1500 VA |
Power Output Connectors Details | 8 x power IEC 60320 C13 | 2 x IEC jumper |
Surge Energy Rating | 459 Joules |
Surge Suppression | Yes |
UPS Technology | Line interactive |
Battery | |
Features | Maintenance free, sealed, leak-proof |
Quantity | 1 |
Recharge Time | 3 hours |
Run Time (Up To) | 6.5 min at full load | 23.1 min at half load | 301 min at 50 Watts | 172 min at 100 Watts | 84 min at 200 Watts | 50.6 min at 300 Watts | 33.3 min at 400 Watts | 23.1 min at 500 Watts | 16.6 min at 600 Watts | 12.4 min at 700 Watts | 9.6 min at 800 W |
Technology | Lead acid |
Transfer Time | 6 ms |
Networking | |
Remote Management Interface | RS-232, USB |
Expansion / Connectivity | |
Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
Interfaces | 1 x management (RS-232) | 1 x USB | 1 x EPO (emergency power off) |
Miscellaneous | |
Cables Included | USB cable - external |
Compliant Standards | CSA, UL 1778, VDE, IEC 62040-2, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1 |
Features | Audible alarm, emergency power off, LCD display, Automatic Voltage Regulation (AVR), cold-start function, automatic self-test, predicitive failure notification, hot-swappable batteries, energy meter |
Software / System Requirements | |
Software Included | APC PowerChute Business Edition |
Manufacturer Warranty | |
Service & Support | Limited warranty - replace or repair - 3 years | Limited warranty - batteries - 2 years |
Environmental Parameters | |
Humidity Range Operating | 0 - 95% |
Max Operating Temperature | 40 °C |
Min Operating Temperature | 0 °C |
Sound Emission | 45 dBA |
Dimensions & Weight | |
Depth | 43.9 cm |
Height | 21.9 cm |
Weight | 24.09 kg |
Width | 17.1 cm |
Dimensions & Weight (Shipping) | |
Shipping Depth | 59.5 cm |
Shipping Height | 37.6 cm |
Shipping Weight | 27.23 kg |
Shipping Width | 32.8 cm |
