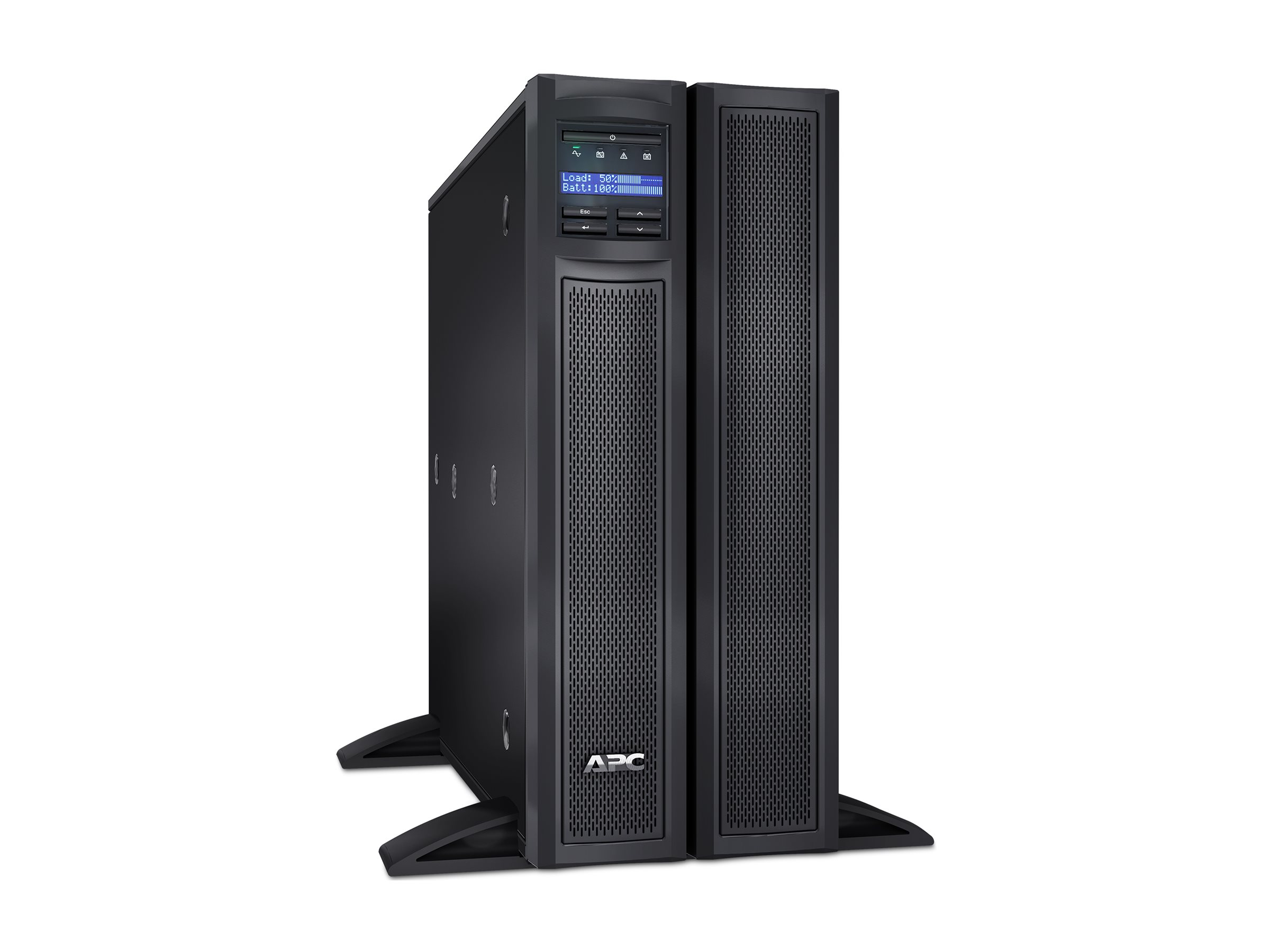

APC Smart-UPS X 2200 Rack/Tower LCD UPS
Denne APC fra Schneider Electric Smart-UPS X er en højtydende Uninterruptible Power Supply (UPS). Den beskytter elektronisk udstyr mod strømafbrydelser, delvise strømudfald og udsving i strømstyrken, små udsving i strømstyrken samt større forstyrrelser. UPS'en leverer også batteribackup, indtil strømmen fra netstrømforsyningen vender tilbage til et sikkert niveau, eller til batterierne er helt afladet.
-
Product no 991254223
Model SMX2200HVNC
Brand APC
EAN 0731304327158
Weight 45 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | APC Smart-UPS X 2200 Rack/Tower LCD - UPS - 1980 Watt - 2200 VA - med APC UPS Network Management Card |
| Enhedstype | UPS - stativ-monterbar / ekstern |
| Rackstørrelse | 4U |
| Vægt | 38.64 kg |
| Indgangspænding | AC 230 V |
| Udgangspænding | AC 230 V |
| Strømkapacitet | 1980 Watt / 2200 VA |
| Input-stik | 1 x strøm IEC 60320 C20 |
| Output-stikforbindelser | 8 x power IEC 60320 C13<br>2 x strøm IEC 60320 C19 |
| Batteri | Blysyre |
| Antal batterier | 1 |
| Driftstid (op til) | 9.8 min ved fuld belastning |
| Netværk | Ethernet 10/100, RS-232, USB |
| Protokol til fjernadministration | SNMP |
| Farve | Sort |
| Dimensioner (B x D x H) | 43.2 cm x 48.3 cm x 17.8 cm |
| Producentgaranti | 3 års garanti |
| Bundtet med | APC UPS Network Management Card |
| Designet for | P/N: AR106SH6, AR109SH6, AR112SH6, AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR3357X674, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBWL0356A, SMX2000LVNCUS, SMX3000HVTUS, SRT1500RMXLA-NC |
| General | |
|---|---|
| Bundled with | APC UPS Network Management Card |
| Color | Black |
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 4U |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Efficiency | 98.1% |
| Frequency Provided | 47 - 53 / 57 - 63 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C20 |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 140 - 280 V |
| Output Voltage | AC 230 V 47 - 53 / 57 - 63 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 1980 Watt / 2200 VA |
| Power Output Connectors Details | 8 x power IEC 60320 C13 | 2 x power IEC 60320 C19 |
| Surge Energy Rating | 645 Joules |
| Surge Suppression | Yes |
| UPS Technology | Line interactive |
| Battery | |
| Quantity | 1 |
| Recharge Time | 3 hours |
| Run Time (Up To) | 9.8 min at full load | 25.3 min at half load |
| Technology | Lead acid |
| Networking | |
| Remote Management Interface | Ethernet 10/100, RS-232, USB |
| Remote Management Protocol | SNMP |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 0 (free) x SmartSlot |
| Interfaces | 1 x USB | 1 x RS-232 | 1 x EPO (emergency power off) |
| Miscellaneous | |
| Cables Included | Serial cable | USB cable | Power cable 1.83 m |
| Compliant Standards | CSA, C-Tick, GOST, UL 1449, UL 1778, VDE, IEC 60950, EN 50091-2, IRAM, RoHS, EN 50091-1, FCC Part 15 A, REACH |
| Features | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), overload protection, cold-start function |
| Rack Mounting Kit | Included |
| Software / System Requirements | |
| Software Included | APC PowerChute Business Edition |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years | Limited warranty - batteries - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 55 dBA |
| Dimensions & Weight | |
| Depth | 48.3 cm |
| Height | 17.8 cm |
| Weight | 38.64 kg |
| Width | 43.2 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 63.3 cm |
| Shipping Height | 33 cm |
| Shipping Weight | 47.73 kg |
| Shipping Width | 58.6 cm |
| Compatibility Information | |
| Designed For | P/N: ACDC2513, AR106SH6, AR109SH6, AR112SH6, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR3003, AR3003SP, AR3006, AR3006SP, AR3100G, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3103, |
