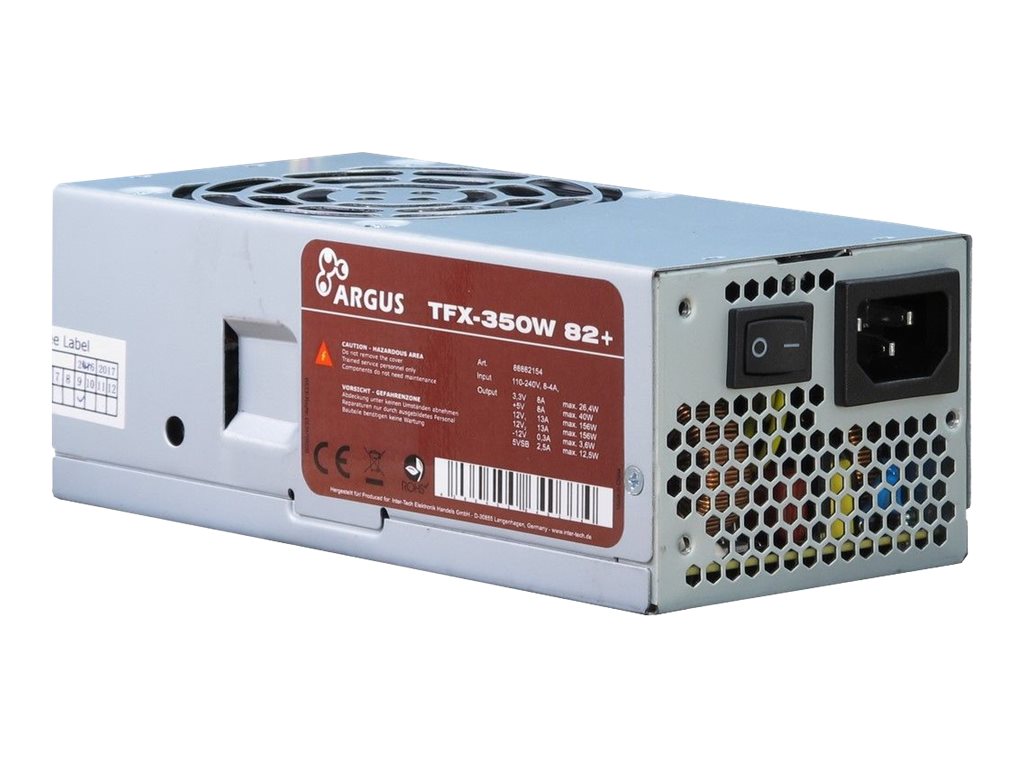

Argus TFX-350W Strømforsyning 350Watt
Argus TFX-350W - Strømforsyning (intern) - TFX12V - AC 115/230 V - 350 Watt - aktiv PFC
-
Product no 991865841
Model 88882154
Brand Inter-Tech Elektroni
EAN 4260455640374
Weight 1.3 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Argus TFX-350W - strømforsyning - 350 Watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | TFX12V |
| Vægt | 990 g |
| Indgangspænding | AC 115/230 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 350 Watt |
| Output Current | +3.3V - 8 A<br>+5V - 8 A<br>+12V1 - 13 A<br>-12V - 0.3 A<br>+5VSB - 2.5 A<br>+12V2 - 13 A |
| Output-stikforbindelser | 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x strøm 8 pin +12 V med aftagelig 4 pin sektion<br>3 x 15 pin Serial ATA strøm<br>2 x 4-PIN intern strøm<br>1 x 4-PIN mini-strømforsyningsforbinder<br>1 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion |
| Kølesystem | 80 mm ventilator |
| Dimensioner (B x D x H) | 8.5 cm x 17.5 cm x 6.5 cm |
| Producentgaranti | 2 års garanti |
| General | |
|---|---|
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| PSU Form Factor | TFX |
| Specification Compliance | TFX12V |
| Power Device | |
| Efficiency | 82%+ |
| Input Voltage | AC 115/230 V |
| Input Voltage Range | AC 110 - 240 V |
| Output Current | +3.3V - 8 A | +5V - 8 A | +12V1 - 13 A | -12V - 0.3 A | +5VSB - 2.5 A | +12V2 - 13 A |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 350 Watt |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section | 1 x power 8 pin +12V with detachable 4 pin section | 3 x 15 pin Serial ATA power | 2 x 4 pin internal power | 1 x 4 pin mini-power connector | 1 x 8 pin PCI Express power with detachable 2 pin sect |
| Miscellaneous | |
| Cables Included | Power cable |
| Cooling System | 80 mm fan |
| Features | Overcurrent protection, overvoltage protection, short-circuit protection |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | |
| Depth | 17.5 cm |
| Height | 6.5 cm |
| Weight | 990 g |
| Width | 8.5 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 17 cm |
| Shipping Height | 8 cm |
| Shipping Weight | 1.27 kg |
| Shipping Width | 21 cm |
