Product no 1000248354
Model 90-MXBHK0-A0UAYZ
Brand
Go to brand's website
EAN 4710483936555
Weight 1.2 kg

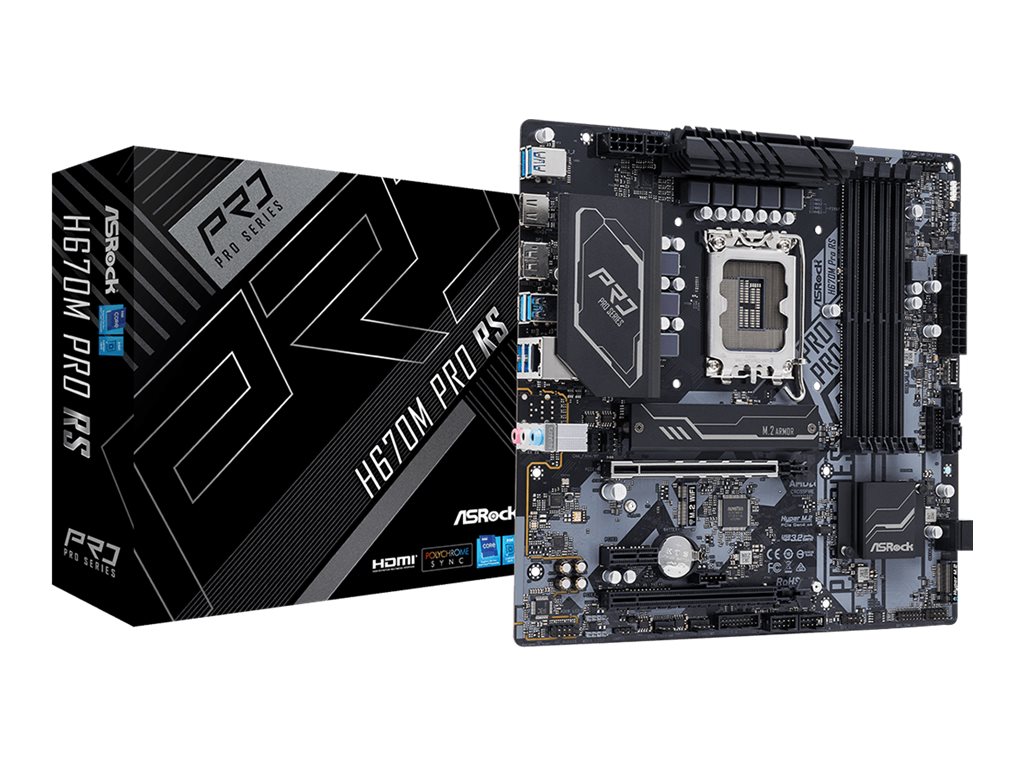

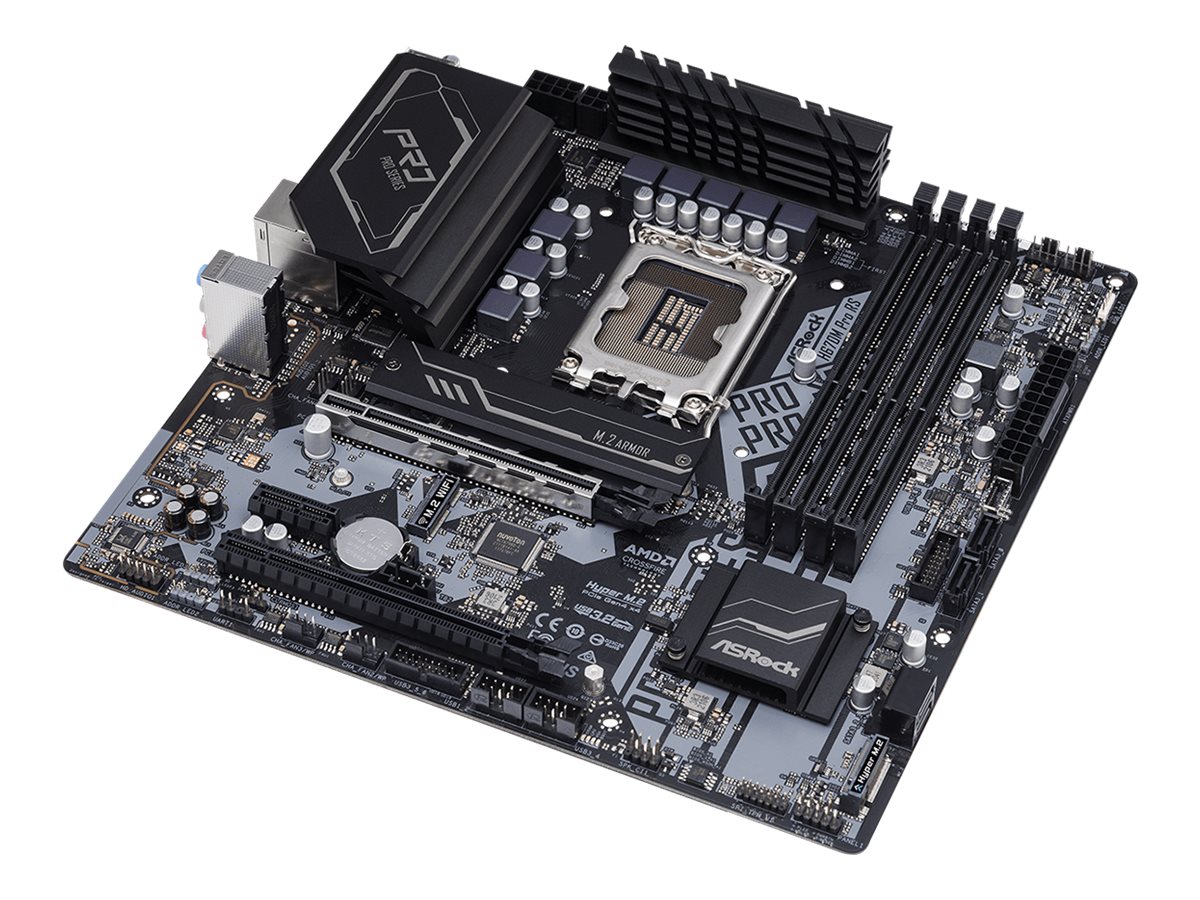

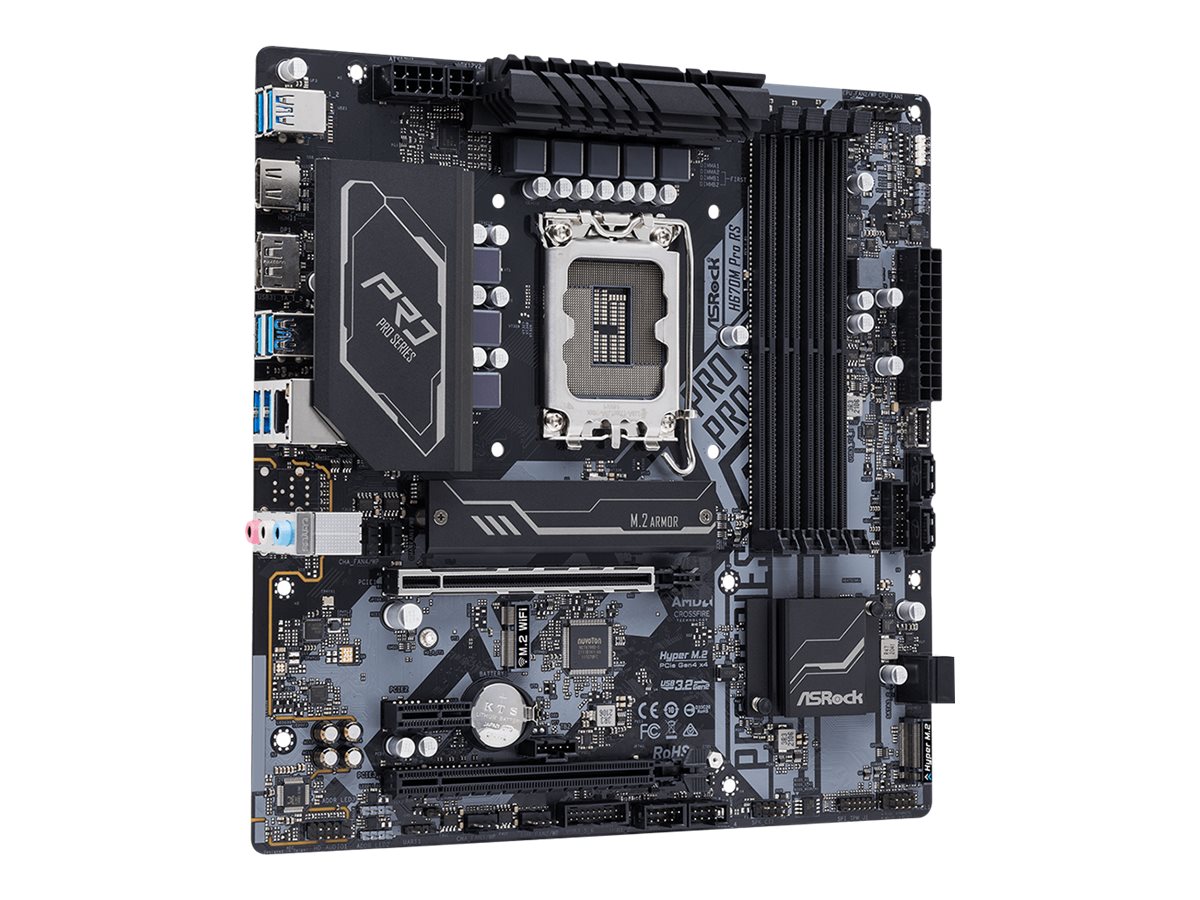

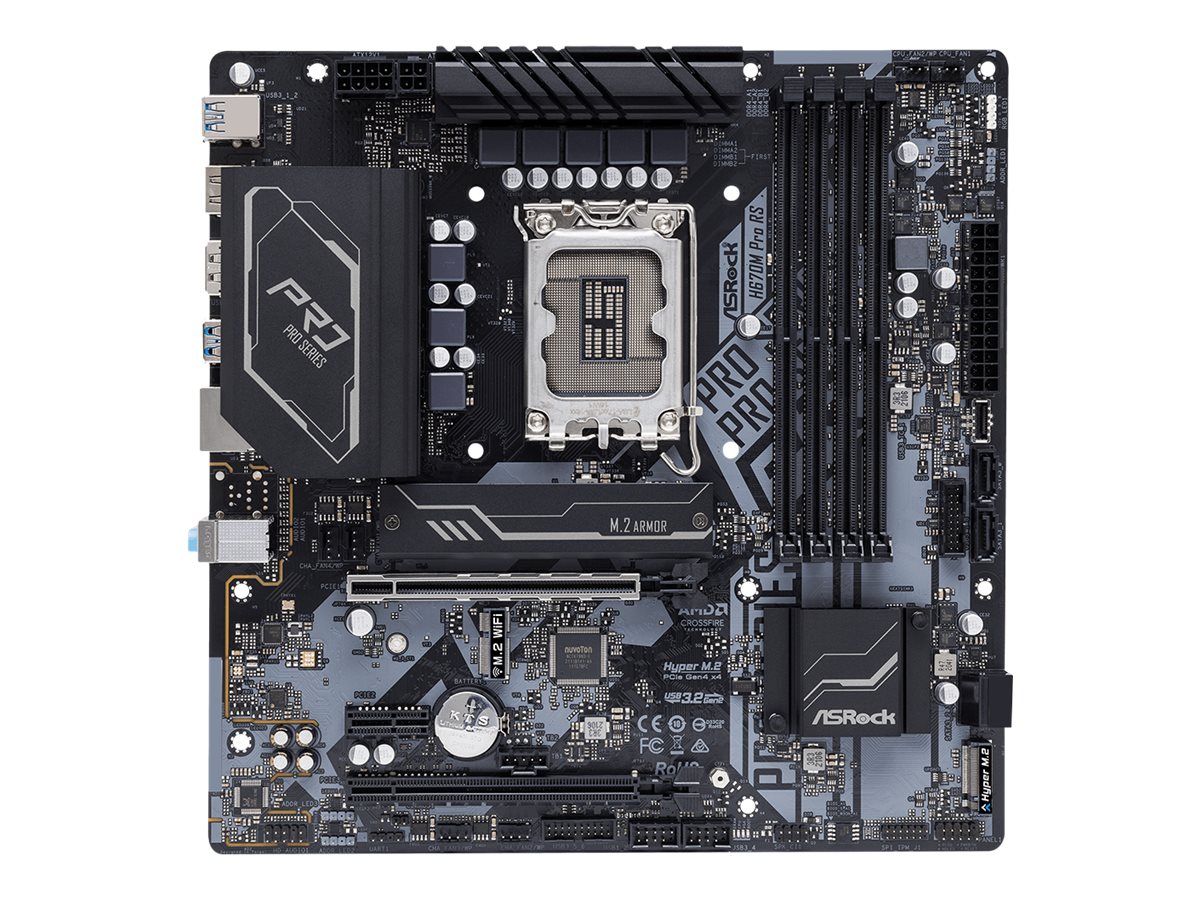

Produktbeskrivelse | ASRock H670M Pro RS - bundkort - micro-ATX - LGA1700 sokkel - H670 |
Produkttype | Bundkort - micro-ATX |
Chipsættype | Intel H670 |
Processor-socket | 1 x LGA1700 sokkel |
Kompatible processorer | (understøtter 12. Generation Intel Core) |
Max RAM-størrelse | 128 GB |
RAM understøttet | 4 DIMM åbninger - DDR4, ikke-ECC, ECC (drift i ikke-ECC tilstand), ikke bufferet |
Lagringsporte | 4 x SATA-600 (RAID), 2 x Hyper M.2 |
USB / FireWire porte | 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (1 x USB-C Gen 1 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser) |
Audio | HD Audio (8-kanaler) |
LAN | Gigabit Ethernet |
General | |
---|---|
Chipset Type | Intel H670 |
Compatible Processors | (supports 12th Generation Intel Core) |
Max Processors Qty | 1 |
Processor Socket | LGA1700 Socket |
Product Type | Motherboard - micro ATX |
Supported RAM | |
Bus Clock | 4800 MHz (O.C.) |
Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
Max Size | 128 GB |
Registered or Buffered | Unbuffered |
Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
Technology | DDR4 |
Audio | |
Audio Codec | Realtek ALC897 |
Compliant Standards | High Definition Audio |
Type | HD Audio (8-channel) |
LAN | |
Network Controller | Intel I219V |
Network Interfaces | Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots | 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 | 1 x PCIe 3.0 x1 | 1 x M.2 socket (Key E) | 1 x PCIe 3.0 x16 (x4 mode) |

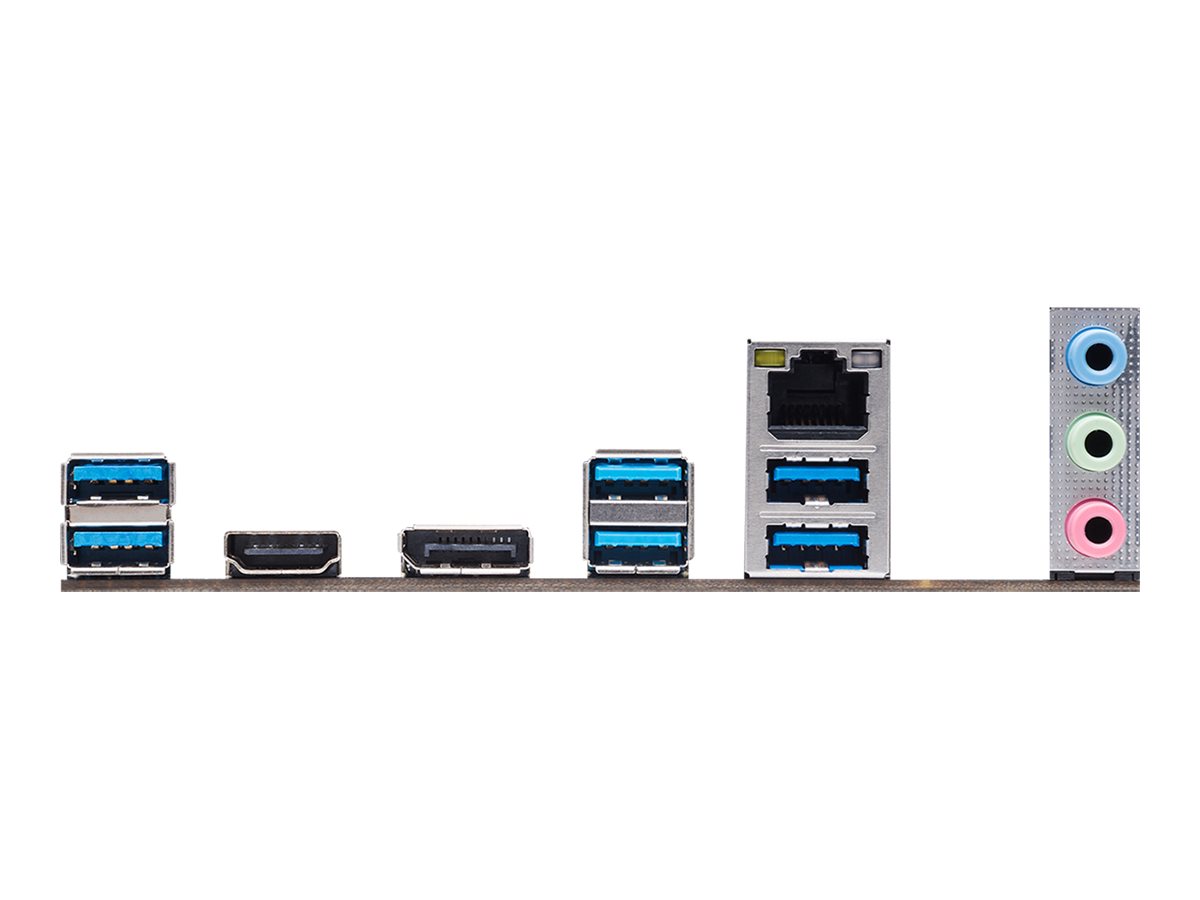

Interfaces | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x HDMI | 1 x LAN (Gigabit Ethernet) | 1 x DisplayPort | 2 x USB 3.2 Gen 2 | 4 x USB 3.2 Gen 1 |
Internal Interfaces | 4 x USB 3.2 Gen 1 - header | 1 x audio - header | 1 x Thunderbolt - header | 1 x USB-C Gen 1 - header | 4 x USB 2.0 - header |
Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 | PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |
Features | |
BIOS Features | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
BIOS Type | AMI |
Hardware Features | ASRock Instant Flash, 7 Phase Power Design, AMD CrossFireX technology support, ASRock Internet Flash, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock A-Tuning, ASRock Full Spike Protection, ASRock APP Sh |
Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, opened case detection |
Sleep / Wake Up | Wake on LAN (WOL) |
Miscellaneous | |
Cables Included | 2 x Serial ATA cable |
Compliant Standards | FCC, EuP Ready, ErP Ready |
Depth | 24.4 cm |
Included Accessories | I/O back plate, 3 x M.2 screws, standoff for M.2 socket |
Software Included | Drivers & utilities, ASRock A-Tuning, Antivirus (Trial version), ASRock XFast LAN, ASRock Polychrome SYNC |
Width | 24.4 cm |
