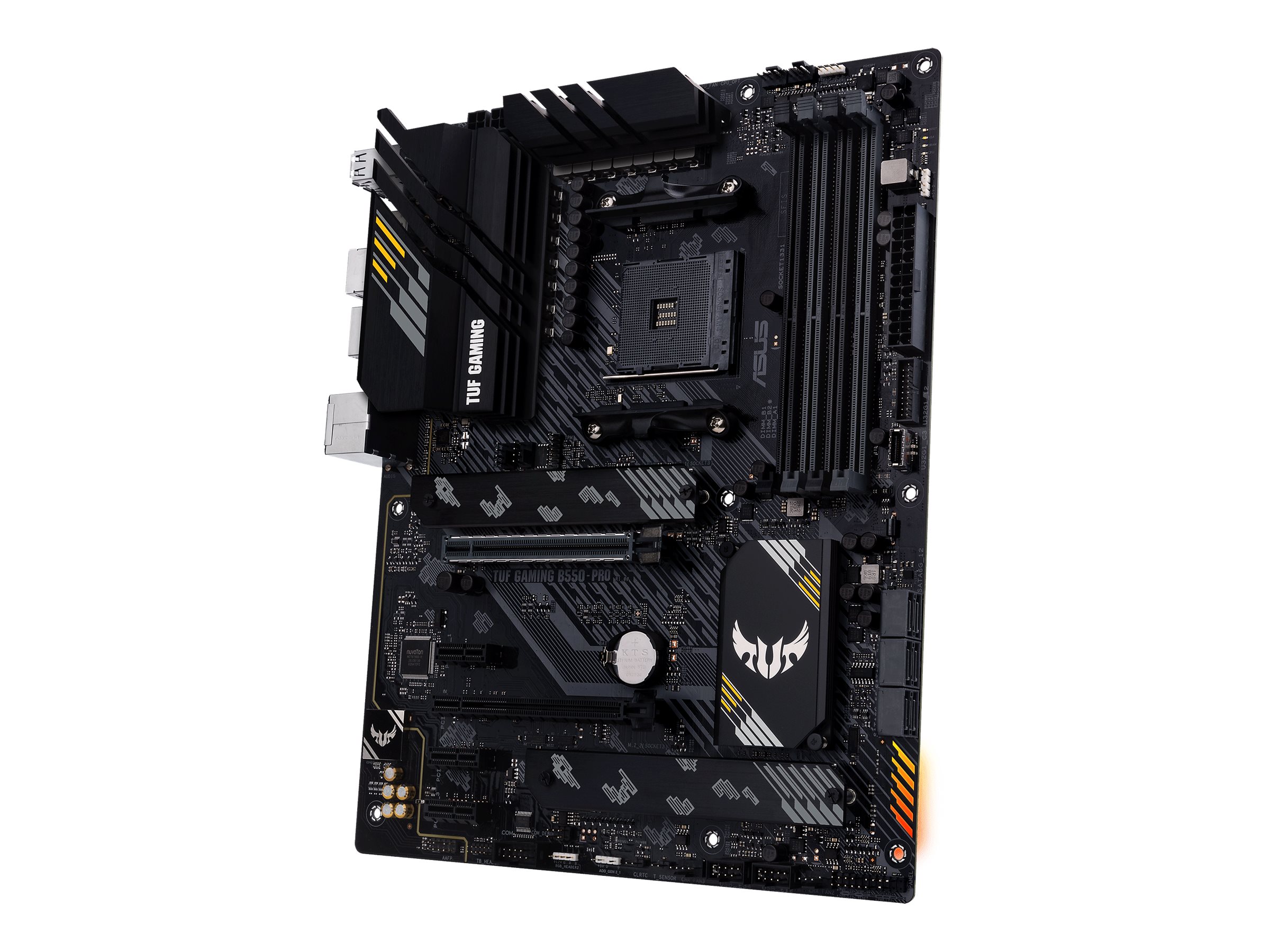

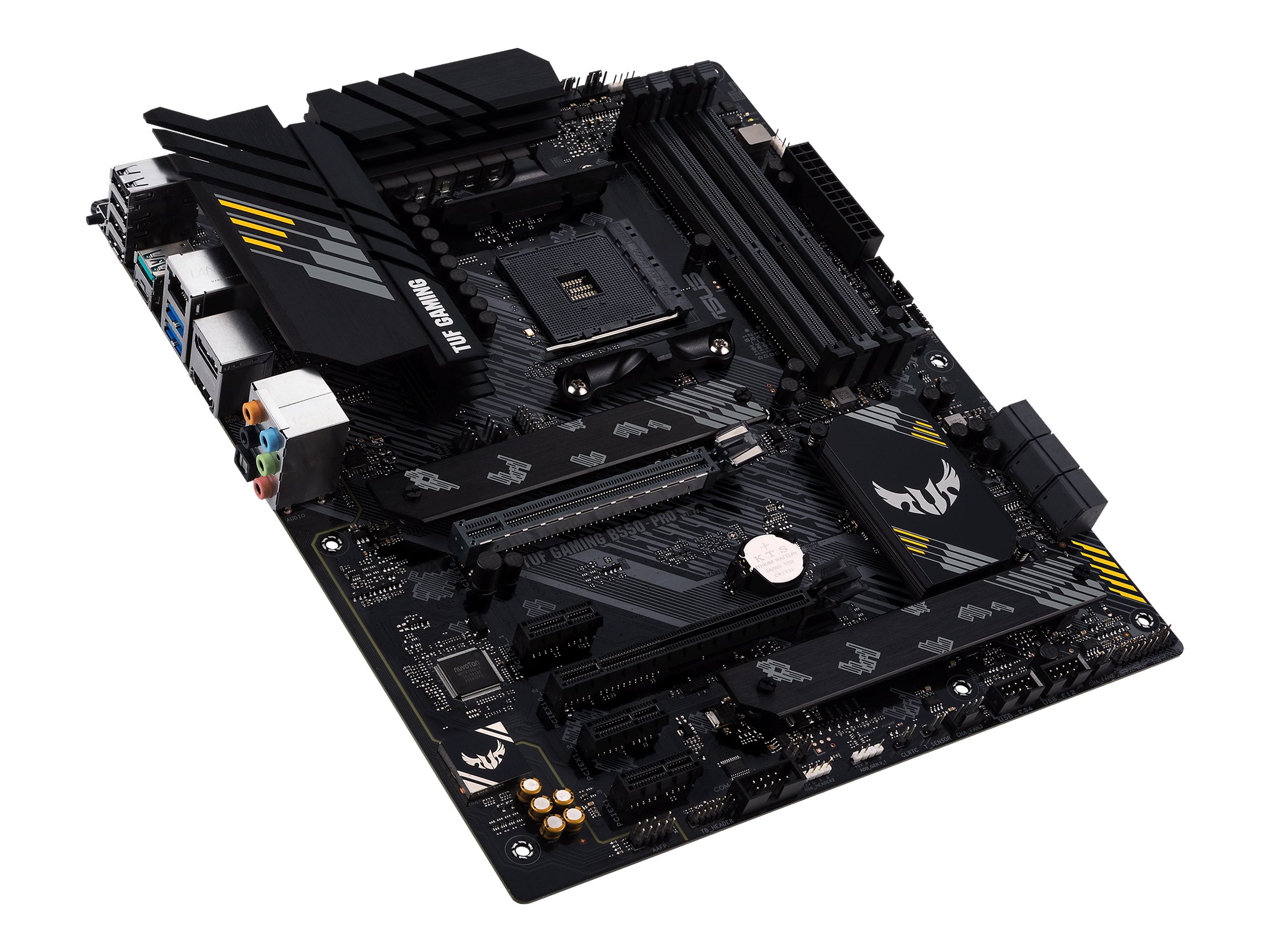

ASUS TUF GAMING B550-PRO ATX AM4 AMD B550

ASUS TUF GAMING B550-PRO - Bundkort - ATX - Socket AM4 - AMD B550 Chipset - USB-C Gen2, USB-C Gen1, USB 3.2 Gen 1, USB 3.2 Gen 2 - 2.5 Gigabit LAN - onboard grafik (CPU påkrævet) - HD Audio (8-kanaler)
1 309,00DKK1 047,20DKK excl. VAT

  • Product no 998088198

    Model 90MB17R0-M0EAY0

    Brand ASUSTeK COMPUTER
    Go to brand's website

    EAN 0195553033725

    Weight 1.54 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse ASUS TUF GAMING B550-PRO - bundkort - ATX - Socket AM4 - AMD B550
Produkttype Bundkort - ATX
Chipsættype AMD B550
Processor-socket 1 x Socket AM4
Kompatible processorer Ryzen (understøtter Ryzen 3000 Series/ 4000 G-Series/ 5000 Series)
Max RAM-størrelse 128 GB
RAM understøttet 4 DIMM åbninger - DDR4, ikke-ECC, ECC, ikke bufferet
Lagringsporte 6 x SATA-600 (RAID), 2 x M.2
USB / FireWire porte 1 x USB-C Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via samlekasser)
Audio HD Audio (8-kanaler)
LAN 2.5 Gigabit Ethernet
Producentgaranti 3 års garanti
General
Chipset Type AMD B550
Compatible Processors Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series)
Max Processors Qty 1
Processor Socket Socket AM4
Product Type Motherboard - ATX
Supported RAM
Bus Clock 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz, 486
Features Dual channel memory architecture
Max Size 128 GB
Registered or Buffered Unbuffered
Supported RAM Integrity Check Non-ECC, ECC
Technology DDR4
Audio
Audio Codec Realtek ALCS1200A
Compliant Standards High Definition Audio, DTS Custom
Type HD Audio (8-channel)
LAN
Network Controller Realtek RTL8125B
Network Interfaces 2.5 Gigabit Ethernet
Expansion / Connectivity
Expansion Slots 1 x CPU | 4 x DIMM 288-pin | 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen 5000 Series/ 3000 Series CPUs); PCIe 3.0 x16 mode (Ryzen 4000 G-Series CPUs)) | 3 x PCIe 3.0 x1 | 1 x PCIe 3.0 x16 (x4 mode) | 1 x M.2 socket (Key E)
Interfaces 1 x DisplayPort | 1 x HDMI | 1 x LAN (2.5Gigabit Ethernet) | 2 x USB 3.2 Gen 1 | 1 x USB 3.2 Gen 2 | 1 x audio line-in - mini-jack | 1 x audio line-out - mini-jack | 1 x microphone - mini-jack | 1 x TOSLINK | 1 x USB-C Gen2 | 4 x USB 2.0 | 1 x audio
Internal Interfaces 4 x USB 2.0 - header | 2 x USB 3.2 Gen 1 - header | 1 x USB-C Gen 1 - header | 1 x audio - header | 1 x Thunderbolt - header | 1 x serial - header
Power Connectors 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Storage Interfaces SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 | SATA-600 / PCIe 4.0 -connectors: 1 x M.2 | SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Features
BIOS Features BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3
BIOS Type AMI
Hardware Features Jack retasking, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, AMD CrossFireX technology support, ASUS Enhanced DRAM O
Sleep / Wake Up Wake on LAN (WOL)
Miscellaneous
Cables Included 2 x Serial ATA cable
Depth 24.4 cm
Included Accessories 1 x M.2 screw, I/O back cover, TUF stickers, 1 x M.2 rubber package
Software Included Drivers & utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, ASUS EZ Flash 3, DAEMON Tools, WinRAR, Norton AntiVirus (60 days trial), ASUS TUF GAMING CPU-Z
Width 30.5 cm
Manufacturer Warranty
Service & Support Limited warranty - 3 years
