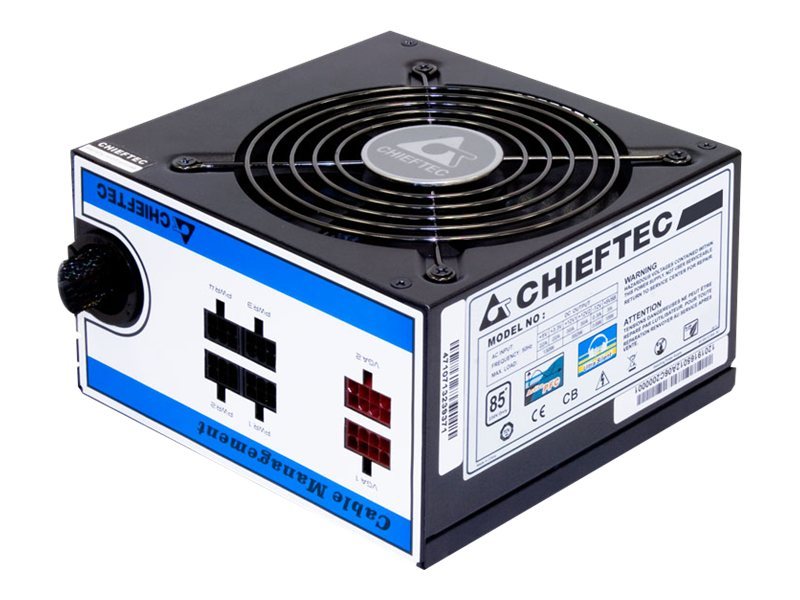

Chieftec A-80 Series CTG-550C Strømforsyning 550Watt
Chieftec A-80 Series CTG-550C - Strømforsyning (intern) - ATX12V 2.3/ EPS12V - AC 230 V - 550 Watt - aktiv PFC
559,00DKK447,20DKK excl. VAT
-
Product no 988849720
Model CTG-550C
Brand Chieftec Industrial
EAN 4710713239364
Weight 2.26 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | Chieftec A-80 Series CTG-550C - strømforsyning - 550 Watt |
| Enhedstype | Strømforsyning - aktiv Power Factor Correction (PFC) - intern |
| Specifikationsoverensstemmelse | ATX12V 2.3/ EPS12V |
| Indgangspænding | AC 230 V |
| Udgangspænding | +3.3, +5, ±12 V |
| Strømkapacitet | 550 Watt |
| Output Current | +5V - 22 A<br>+3.3V - 22 A<br>+12V1 - 25 A<br>+12V2 - 25 A<br>-12V - 0.3 A<br>+5VSB - 3 A |
| Output-stikforbindelser | 1 x strøm 24 pin ATX med aftagelig 4 pin sektion<br>1 x strøm 8 pin EPS12 V med aftagelig 4 pin ATX12V sektion<br>2 x 8 pin PCI Express-strøm med aftagelig 2 pin sektion<br>6 x 15 pin Serial ATA strøm<br>4 x 4-PIN intern strøm<br>2 x 4-PIN mini-strømforsyningsforbinder |
| Modulær Kabel Administration | Ja |
| Kølesystem | 120 mm ventilator |
| Dimensioner (B x D x H) | 15 cm x 14 cm x 8.7 cm |
| Producentgaranti | 2 års garanti |
