Product no 1000583748
Model DN-170096
Brand DIGITUS
EAN 4016032474678
Weight 26 kg

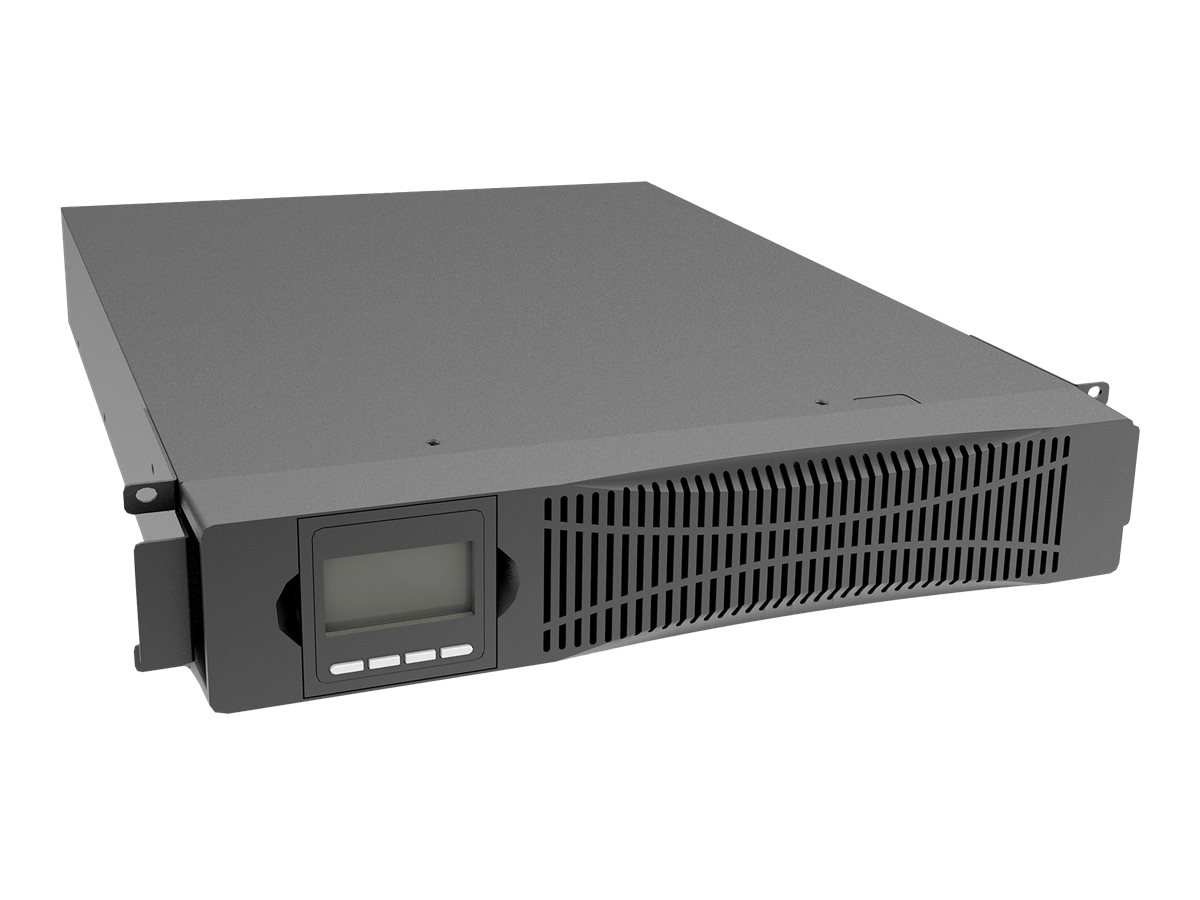

Produktbeskrivelse | DIGITUS DN-170096 - UPS - 3000 Watt - 3000 VA |
Enhedstype | UPS - stativ-monterbar / ekstern |
Rackstørrelse | 19" - 2U |
Vægt | 26 kg |
Indgangskabler | 1-faset |
Indgangspænding | AC 208/220/230/240 V |
Udgangspænding | AC 208/220/230/240 V ± 1% |
Strømkapacitet | 3000 Watt / 3000 VA |
Input-stik | 1 |
Output-stikforbindelser | 8 x power IEC 60320 C13<br>1 x strøm IEC 60320 C19 |
Batteri | - 9 At |
Antal batterier | 6 |
Driftstid (op til) | 1.5 min ved fuld belastning |
Netværk | RS-232, USB |
Protokol til fjernadministration | SNMP |
Dimensioner (B x D x H) | 44 cm x 60 cm x 8.65 cm |
General | |
---|---|
Device Type | UPS - rack-mountable / external |
Height (Rack Units) | 2U |
Rack Size | 19" |
Power Device | |
Dataline Surge Protection | Network - RJ-45 - 1 input line / 1 output line |
Efficiency | 93% AC mode, 87% DC mode |
Frequency Provided | 50/60 Hz ± 0.1Hz |
Frequency Required | 40 - 70 Hz |
Input Connectors | 1 |
Input Voltage | AC 208/220/230/240 V |
Input Voltage Range | AC 110 - 290 V |
Input Wiring | 1-phase |
Output Voltage | AC 208/220/230/240 V ± 1% - 50/60 Hz |
Output Waveform | Sinewave |
Power Capacity | 3000 Watt / 3000 VA |
Power Factor (PF) | 1.0 |
Power Output Connectors Details | 8 x power IEC 60320 C13 | 1 x power IEC 60320 C19 |
Surge Suppression | Yes |
Total Harmonic Distortion (THD) | 5 % |
UPS Technology | On-line |
Battery | |
Capacity | 9 Ah |
Quantity | 6 |
Recharge Time | 4 hours |
Run Time (Up To) | 1.5 min at full load | 3 min at 75% load | 9 min at half load | 22 min at 25% load |
Transfer Time | 4 ms |
Voltage Provided | 12 V |
Networking | |
Remote Management Interface | RS-232, USB |
Remote Management Protocol | SNMP |
Expansion / Connectivity | |
Expansion Slots | 1 (total) / 1 (free) x expansion slot |
Interfaces | 1 x RS-232 - 9 pin D-Sub (DB-9) | 1 x USB - 4 pin USB Type B | EPO (emergency power off) |
Miscellaneous | |
Compliant Standards | IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 62040-2, IEC 60950-1, EN 60950-1, EN 62040-2, IEC 62040-1, EN 62040-1 |
Features | Audible alarm, LCD display, overheat protection, internal bypass, overload protection, short-circuit protection, cooling fan, generator compatible, low battery alarm |
Rack Mounting Kit | Included |
Environmental Parameters | |
Humidity Range Operating | 0 - 90% (non-condensing) |
Max Operating Temperature | 40 °C |
Min Operating Temperature | 0 °C |
Sound Emission | 55 dBA |
Dimensions & Weight | |
Depth | 60 cm |
Height | 8.65 cm |
Weight | 26 kg |
Width | 44 cm |
Dimensions & Weight (Shipping) | |
Shipping Depth | 55.5 cm |
Shipping Height | 20.2 cm |
Shipping Weight | 30.2 kg |
Shipping Width | 73.2 cm |
