Product no 992519992
Model GS510TPP-100EUS
Brand NETGEAR
EAN 0606449119015
Weight 3.02 kg

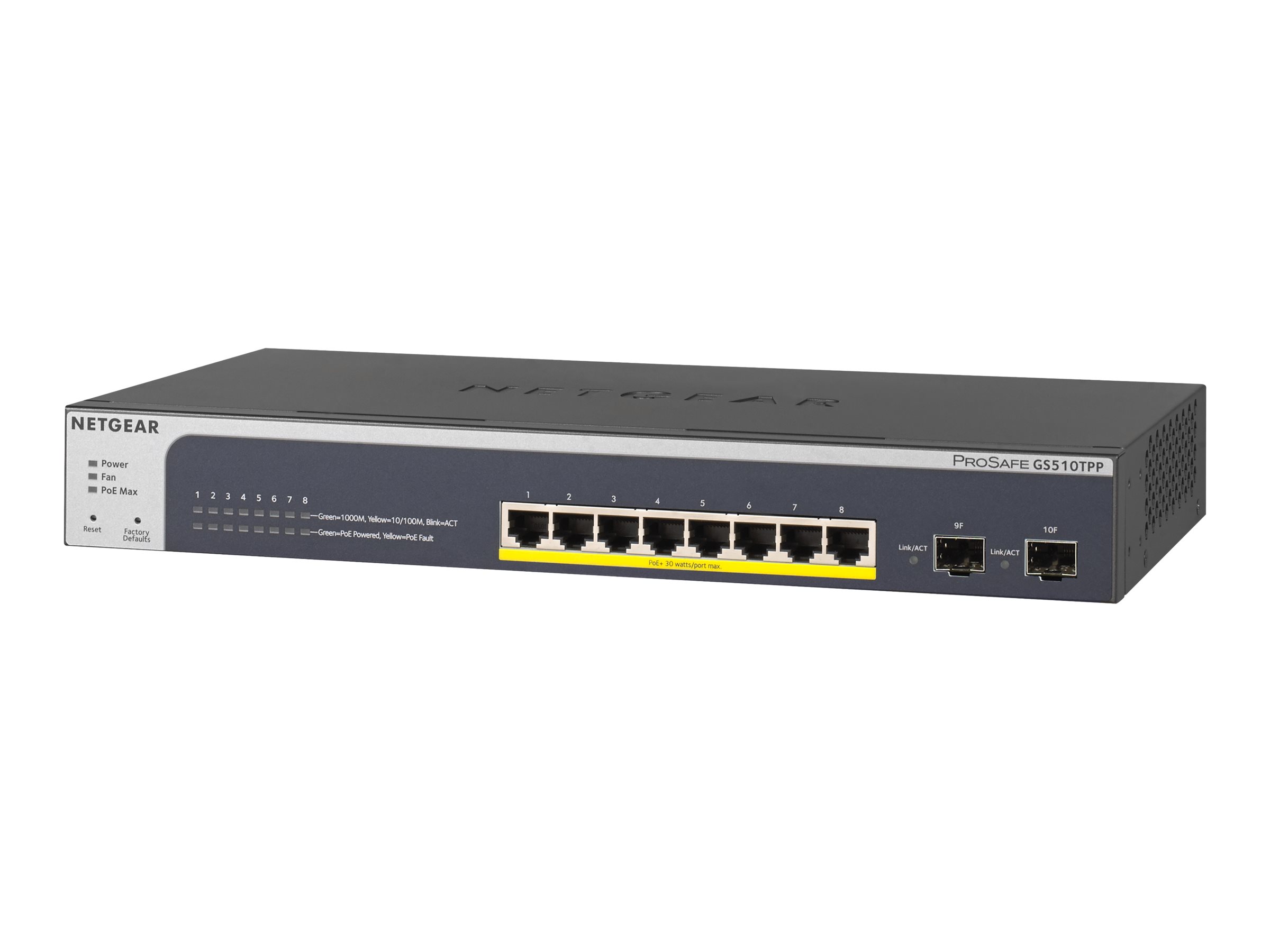

Produktbeskrivelse | NETGEAR Smart GS510TPP - switch - 8 porte - smart - monterbar på stativ |
Enhedstype | Switch - 8 porte - L3 Lite - smart |
Pakningstype | Monterbar på stativ |
Undertype | Gigabit Ethernet |
Porte | 8 x 10/100/1000 (PoE+) + 2 x SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE-budget | 190 W |
Præstation | Stof-gennemløb: 20 Gbps<br>Pakkevideresendelseshastighed: 14.88 Mpps |
Kapacitet | Virtuelle grænseflader (VLANs): 256<br>ACL: 100<br>IPv4 ruter (statisk): 32<br>IPv6 ruter (statisk): 32<br>IGMP-sporingsgrupper: 512<br>Prioritetskøer: 8<br>Lag 3 multicast-grupper: 512 |
MAC adresse table størrelse | 16.000 indlæg |
Jumborammesupport | 9KB |
Routingprotokol | IGMPv2, IGMP, IGMPv3, MLDv2, MLD |
Protokol til fjernadministration | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP |
Egenskaber | Datatransport, understøttet af ARP, VLAN-understøttet, IGMP snooping, Syslog understøttet, DoS attack beskyttelse, portspejling, DiffServ understøttet, WRR kø, gem og send, Broadcast Storm Control, fuld dupleksmodus, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, MSTP support, ACL support, QoS, MDL snooping, LLDP support, DHCP videresendelse, LACP, DHCP klient, Energy Efficient Ethernet, MVR, dobbelt firmware-billeder, NAC, 802.1x autentificering, DSCP support, 1,5 MB pakkebuffer, ICMP Router Discovery Protocol (IRDP), IGMP-forespørger, 1 blæser |
Overensstemmelsesstandarder | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
Effekt | AC 120/230 V (50 - 60 Hz) |
Dimensioner (B x D x H) | 32.8 cm x 16.9 cm x 4.3 cm |
Vægt | 1.83 kg |
Lokalisering | Europa |
Producentgaranti | NETGEAR livstids garanti |
General | |
---|---|
Authentication Method | RADIUS, TACACS+ |
Capacity | Virtual interfaces (VLANs): 256 | ACL: 100 | IPv4 routes (static): 32 | IPv6 routes (static): 32 | IGMP snooping groups: 512 | Priority queues: 8 | Layer 3 multicast groups: 512 |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
Device Type | Switch - 8 ports - L3 Lite - smart |
Enclosure Type | Desktop, rack-mountable |
Encryption Algorithm | TLS 1.0, SSL 3.0 |
Features | Flow control, ARP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, store and forward, Broadcast Storm Control, full duplex mode, Multicast Storm Control |
Flash Memory | 256 MB |
Jumbo Frame Support | 9KB |
MAC Address Table Size | 16000 entries |
Performance | Fabric throughput: 20 Gbps | Packet forwarding rate: 14.88 Mpps |
PoE Budget | 190 W |
Ports | 8 x 10/100/1000 (PoE+) + 2 x SFP |
Power Over Ethernet (PoE) | PoE+ |
Processor | Cortex-A9: 400 MHz |
RAM | 512 MB |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP |
Routing Protocol | IGMPv2, IGMP, IGMPv3, MLDv2, MLD |
Status Indicators | Port transmission speed, power, link/activity, fan |
Subtype | Gigabit Ethernet |
Expansion / Connectivity | |
Interfaces | 8 x 1000Base-T RJ-45 PoE+ | 2 x 1000Base-X SFP |
Power | |
Power Consumption Operational | 225 Watt |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (50 - 60 Hz) |
Miscellaneous | |
Compliant Standards | CISPR 22 Class A, EN 60950, UL 1950, EN55024, CSA 22.2 No. 950, AS/NZS 60950-1, CCC, FCC Part 15 A, C-Tick Class A, SCC, VCCI Class A, AS/NZS CISPR22:2009+A1:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 55022 Class A, FCC CFR47 Part 15 B Class A, I |
Included Accessories | 4 foot pads |
Localization | Europe |
MTBF | 1,509,979 hours |
Rack Mounting Kit | Included |
Dimensions & Weight | |
Depth | 16.9 cm |
Height | 4.3 cm |
Weight | 1.83 kg |
Width | 32.8 cm |
Manufacturer Warranty | |
Service & Support | NETGEAR lifetime warranty |
Environmental Parameters | |
Humidity Range Operating | 90% (non-condensing) |
Max Operating Temperature | 50 °C |
Max Storage Temperature | 70 °C |
Min Operating Temperature | 0 °C |
Min Storage Temperature | -20 °C |
