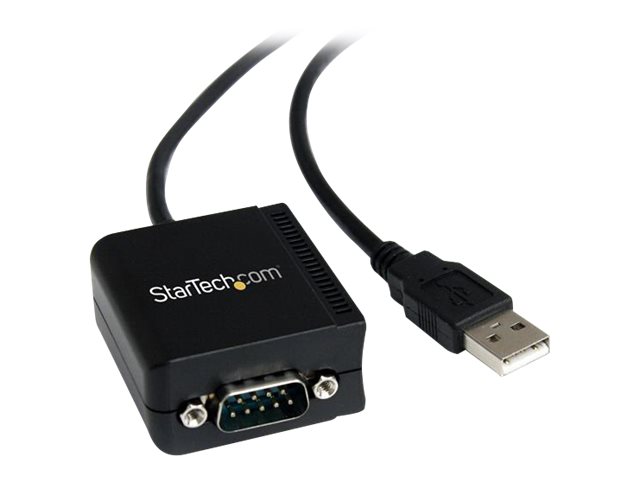

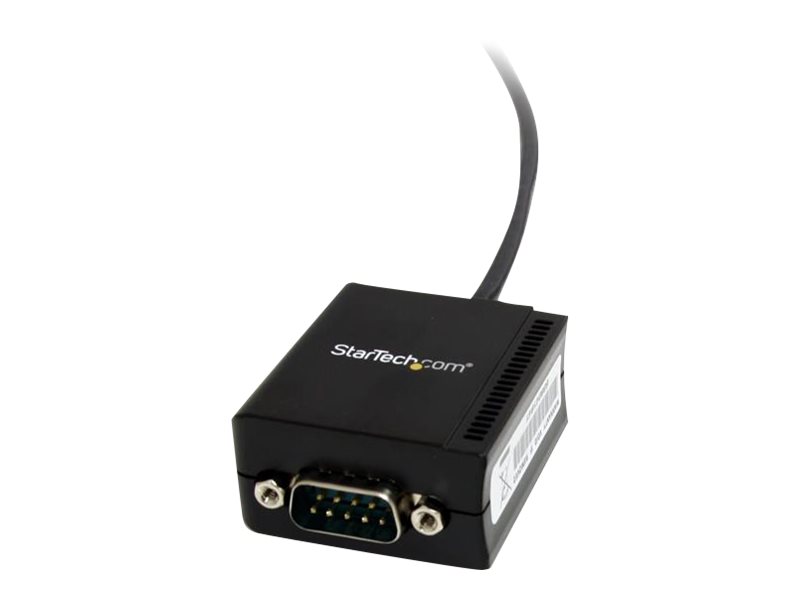

StarTech.com Seriel adapter USB 921.6Kbps Kabling

StarTech.com USB to Serial Adapter - Optical Isolation - USB Powered - FTDI USB to Serial Adapter - USB to RS232 Adapter Cable (ICUSB2321FIS) - Seriel adapter - USB - RS-232 - sort
1 289,00DKK1 031,20DKK excl. VAT

  • Product no 988492807

    Model ICUSB2321FIS

    Brand StarTech.com

    EAN 0065030845373

    Weight 0.22 kg

  • Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
Produktbeskrivelse StarTech.com USB to Serial Adapter - Optical Isolation - USB Powered - FTDI USB to Serial Adapter - USB to RS232 Adapter Cable (ICUSB2321FIS) - seriel adapter - USB - RS-232
Enhedstype Seriel adapter
Model Ekstern
Grænseflade (bus) type USB
Porte RS-232
Dimensioner (B x D x H) 4.2 cm x 4.5 cm x 2.2 cm
Vægt 150 g
Dataforbindelsesprotokol RS-232
Dataoverførselshastighed 921.6 Kbps
Processor FTDI FT232RL
Farve Sort
Systemkrav Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Linux Kernel 3.0 eller nyere, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, kun Linux LTS-versioner, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Apple macOS 13.0
Producentgaranti 2 års garanti
General
Device Type Serial adapter
Form Factor External
Interface (Bus) Type USB
Networking
Connectivity Technology Wired
Data Link Protocol RS-232
Data Transfer Rate 921.6 Kbps
Features 2500V isolation, USB powered, plastic housing
Ports RS-232
Processor / Memory
Processor FTDI FT232RL
Expansion / Connectivity
Connections 1 x USB - 4 pin USB Type A
Interfaces 1 x RS-232 - 9 pin D-Sub (DB-9)
Miscellaneous
Cables Included 1 x USB cable (integrated) - 1.8 cm
Color Black
Compliant Standards WHQL, FCC, RoHS
Software / System Requirements
OS Required Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsof
Dimensions & Weight
Depth 4.5 cm
Height 2.2 cm
Weight 150 g
Width 4.2 cm
Manufacturer Warranty
Service & Support Limited warranty - 2 years
Environmental Parameters
Humidity Range Operating 5 - 95%
Max Operating Temperature 55 °C
Min Operating Temperature 0 °C

Add an RS232 serial port with circuit isolation to your laptop or desktop computer, through USB

  • USB to Straight-Through RS232 Serial Adapter
  • Integrated 2500Vrms Optical Isolation Circuits
  • 500W Bi-Directional Surge Protection Circuits
Add an RS232 serial port with circuit isolation to your laptop or desktop computer, through USB
slide {0} of {1}, zoom in, Add an RS232 serial port with circuit isolation to your laptop or desktop computer, through USB
slide {0} of {1}, zoom in, Add an RS232 serial port with circuit isolation to your laptop or desktop computer, through USB
slide {0} of {1}, zoom in, Add an RS232 serial port with circuit isolation to your laptop or desktop computer, through USB
slide {0} of {1}, zoom in, Add an RS232 serial port with circuit isolation to your laptop or desktop computer, through USB
slide {0} of {1}, zoom in, Add an RS232 serial port with circuit isolation to your laptop or desktop computer, through USB
Circuit isolation provides electrical protection for sensitive industrial equipment

Circuit isolation provides electrical protection for sensitive industrial equipment

The USB to serial adapter features integrated optical isolation circuits and surge protection to protect your critical, sensitive control equipment against electrical damage, making it a viable solution for costly industrial serial devices.
The FTDI chipset driver is highly customizable and broadly compatible

The FTDI chipset driver is highly customizable and broadly compatible

The versatile FTDI chipset also supports COM retention, additional customization/features, and compatibility not offered by most other solutions. Broad operating system compatibility including Windows, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments.
Guaranteed Reliability

Guaranteed Reliability

The ICUSB2321FIS 1-Port FTDI USB to Serial RS232 Adapter Cable with Optical Isolation is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Perfect for IT Administrators looking to add legacy functionality to newer laptops, desktop computers and servers that lack an integrated RS232 port
  • Connect, monitor and control industrial/automotive sensors and other sensitive equipment
  • Connect bar code scanners, receipt printers and other point-of-sale devices
  • Connect and program LED and Digital signage boards with serial communication ports
  • Connect a satellite receiver, serial modem, or PDU
