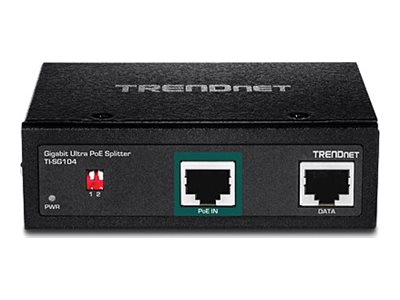

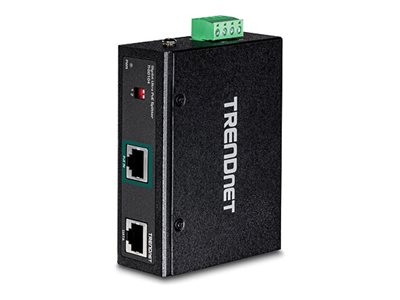

TRENDnet TI-SG104 PoE fordeler Monterbar på DIN rail Sort
TRENDnet TI-SG104 - PoE fordeler (monterbar på DIN rail) - 95 Watt - output-stikforbindelser: 1 - TAA-kompatibel
599,00DKK479,20DKK excl. VAT
-
Product no 993756976
Model TI-SG104
Brand
Go to brand's websiteEAN 0710931161380
Weight 0.44 kg
-
Product information and specifications are guiding only. Without notice, these can be subject to change by the manufacturer. This applies for product images as well.
| Produktbeskrivelse | TRENDnet TI-SG104 - PoE fordeler - 95 Watt - TAA-kompatibel |
| Enhedstype | PoE fordeler - monterbar på DIN rail |
| Power Over Ethernet (PoE) | UPOE |
| Vægt | 172 g |
| Udgangspænding | 12 / 16 / 24 / 48 V |
| Strømkapacitet | 95 Watt |
| Input-stik | 1 x RJ-45 |
| Output-stikforbindelser | 1 x 4-pin terminalblok |
| Udstyr inkluderet | Vægmonteringsbøjle, DIN-skinnebøjler, terminalblok |
| TAA kompatibel | TAA-kompatibel |
| Dimensioner (B x D x H) | 10.4 cm x 8.2 cm x 3.2 cm |
| Producentgaranti | 3 års garanti |
| General | |
|---|---|
| Device Type | PoE splitter - DIN rail mountable |
| Power Over Ethernet (PoE) | UPOE |
| Power Device | |
| Input Connectors | 1 x RJ-45 |
| Max Electric Current | 2.3 A |
| Output Voltage | 12 / 16 / 24 / 48 V |
| Power Capacity | 95 Watt |
| Power Consumption Operational | 7 Watt |

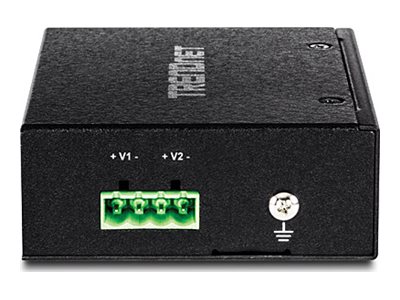

| Power Output Connectors Details | 1 x 4 pin terminal block |
| Expansion / Connectivity | |
| Interfaces | 1 x Gigabit LAN - RJ-45 |
| Miscellaneous | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, FCC, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30, IEC/EN 60950-1 |
| Features | Wall mountable, LED indicators, 2 kV surge protection, 4 kV ESD protection, DIP switch |
| Included Accessories | Wall mounting bracket, DIN-rail brackets, terminal block |
| MTBF | 684,452 hours |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
| Dimensions & Weight | |
| Depth | 8.2 cm |
| Height | 3.2 cm |
| Weight | 172 g |
| Width | 10.4 cm |
