Product no 993132906
Model PBE-2AC-400
Brand
Go to brand's website
EAN 0810354023644
Weight 0.2 kg

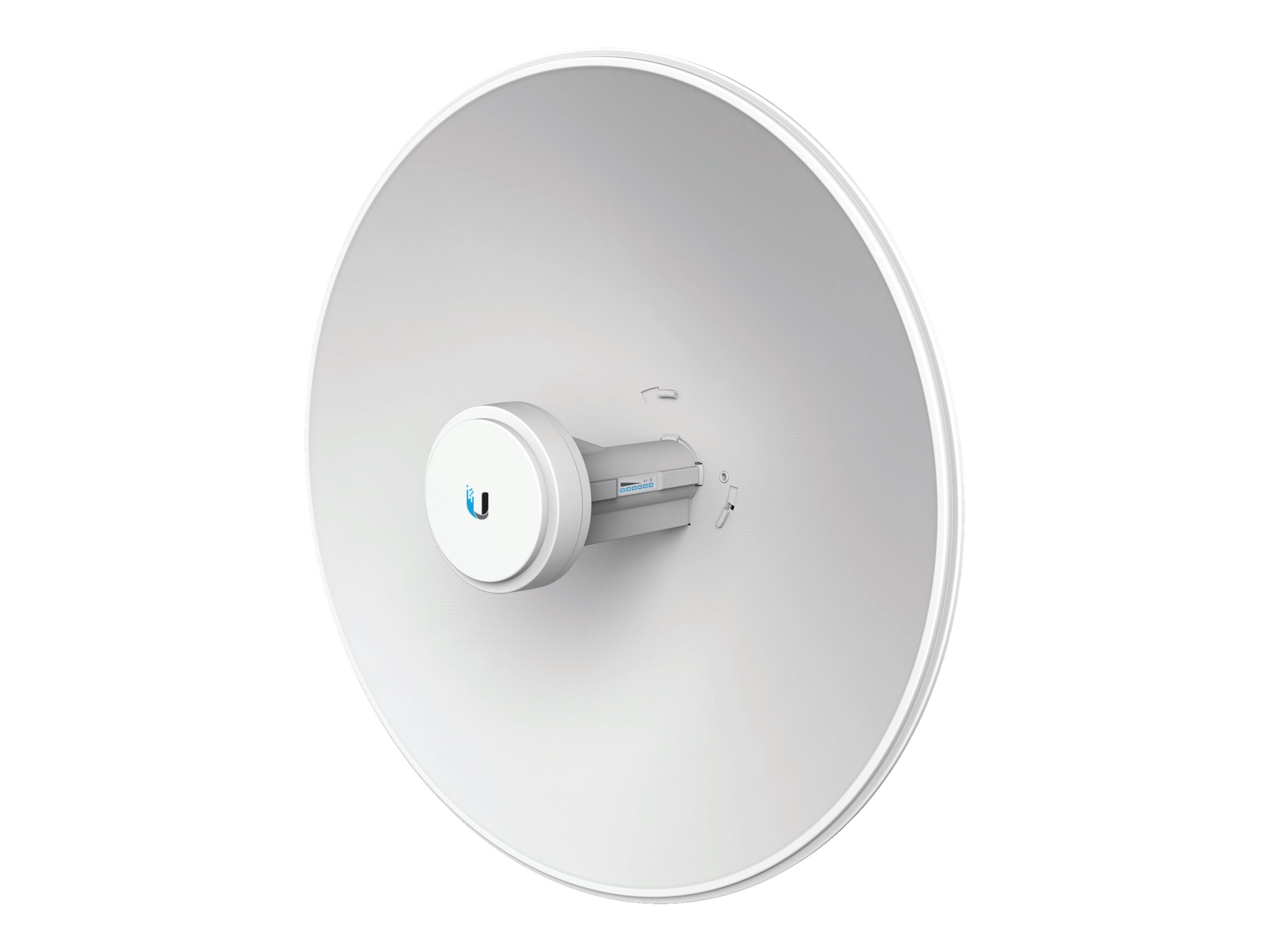

Produktbeskrivelse | Ubiquiti PowerBeam ac PBE-2AC-400 - trådløs bro - AirMax ac |
Enhedstype | Trådløs bro |
Formfaktor | Ekstern - udendørs |
Processor | 1 x Atheros MIPS 74KC |
RAM | 64 MB |
Dataforbindelsesprotokol | AirMax ac |
Frekvensbånd | 2.4 GHz |
Udstyr inkluderet | Pælmontering |
Power Over Ethernet (PoE) understøttet | Passive PoE |
Effekt | DC 22 - 26 V |
Dimensioner (B x D x H) | 42 cm x 28.9 cm x 42 cm |
Vægt | 1.795 kg |
General | |
---|---|
Depth | 28.9 cm |
Device Type | Wireless bridge |
Height | 42 cm |
Ruggedized Design | Outdoor |
Weight | 1.795 kg |
Width | 42 cm |
Processor / Memory / Storage | |
Max Supported Qty | 1 |
Processors Installed | 1 x Atheros MIPS 74KC |
RAM | 64 MB |
Networking | |
Connectivity Technology | Wireless |
Data Link Protocol | AirMax ac |
Data Transfer Rate | 330 Mbps |
Encryption Algorithm | WPA2 |
Features | Quality of Service (QoS), pole mountable, 24KV ESD Protector, airView, Wi-Fi management |
Form Factor | External |
Frequency Band | 2.4 GHz |
Line Coding Format | 64 QAM, 256 QAM |
Max Range Open Space | 20 km |
Status Indicators | Power, signal strength, LAN |
Antenna | |
Gain Level | 18 dBi |
Expansion / Connectivity | |
Interfaces | 1 x 1000Base-T (PoE) - RJ-45 |
Miscellaneous | |
Compliant Standards | IC, FCC, RoHS, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-5, ETS 300 019-1-4 |
Included Accessories | Pole mount |
Power | |
Power Consumption Operational | 7.5 Watt |
Power Over Ethernet (PoE) Supported | Passive PoE |
Voltage Required | DC 22 - 26 V |
Software / System Requirements | |
OS Provided | AirOS 8 |
Environmental Parameters | |
Humidity Range Operating | 5 - 95% (non-condensing) |
Max Operating Temperature | 70 °C |
Min Operating Temperature | -40 °C |
